Closed Housing 100W Permanent Magnet Brushless DC Motor

Brand Name : OEM

Certification : CE/ISO/ROHS

Place of Origin : China

MOQ : Negotiable

Payment Terms : L/C, T/T, Western Union, Paypal

Delivery Time : 15-25days

Packaging Details : with export carton

Price : Negotiable

Supply Ability : 25000pc/month

Voltage Range : 12 & 24v dc (240v also available)

Power Output Range : 40 to 100 watts

Speed Range : up to 10,000rpm

Operational Temperature : -20°C to +40°C

Insulation Class : F(consult us for class B)

Bear Type : High quality ball bearings

Contact Now

Closed Housing 100W Permanent Magnet Brushless DC Motor

General specification

Voltage Range	12 & 24v dc (240v also available)
Power Output Range	40 to 100 watts
Speed Range	up to 10,000rpm
Operational Temperature	-20°C to +40°C
Insulation Class	F(consult us for class B)
Bear Type	High quality ball bearings
Housing Type	Closed(ventilated also available)

Performance Data

Part Number	Voltage	Rated Power	Rated Speed	Rated Torque	Rated Current	No load Speed	Length
Units	V	W	Rpm	mNm	A	Rpm	mm
63ZYT95-12V	12	44.5	3100	137	5.2	3600	95
63ZYT95-24V	24	48.4	3300	140	2.7	3600	95
63ZYT95-40V	40	48.7	3500	133	1.7	3800	95
63ZYT125-12V	12	75.4	3000	240	8.7	3500	125
63ZYT125-24V	24	94.7	3350	270	4.9	3650	125
63ZYT125-40V	40	97.5	3450	270	3	3600	125

Description

Hybrid permanent magnet DC motor are widely used in rotary pumps, clay pigeon traps, electric vehicles, golf carts, hoists, winches and a multitude of other applications

Customization Options

Brake:

All permanent magnet DC motors can be supplied with a choice of 12 or 24V parking brake. An optional manual brake release is also available.

Encode:

permanent magnet motors can be supplied with a variety of encode types and resolutions.

Custom shaft:

All permanent magnet DC motors are available to order with a wide selection of custom shaft configurations.

Applications:

solar
automobile
communication
inkjet printer
pump
medical
blower
security

Closed Housing 100W Permanent Magnet Brushless DC Motor

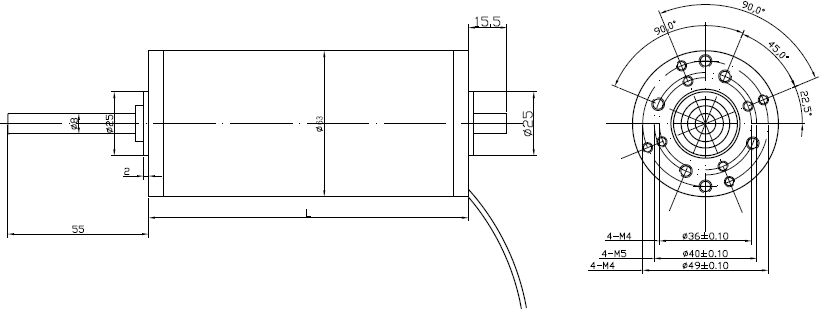

Dimensions in mm

Product Tags:

40V brushless permanent magnet motor

100W permanent magnet bldc motor

3600Rpm permanent magnet dc electric motors

Quality Closed Housing 100W Permanent Magnet Brushless DC Motor wholesale

Closed Housing 100W Permanent Magnet Brushless DC Motor Images
